AYVAZ - Float Switch
AYVAZ - Float Switch
Model : C4
Float Material : CF8M
Body Material : Aluminum Injection
Class : PN 6 / PN 16
End Connection : Flanged End

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

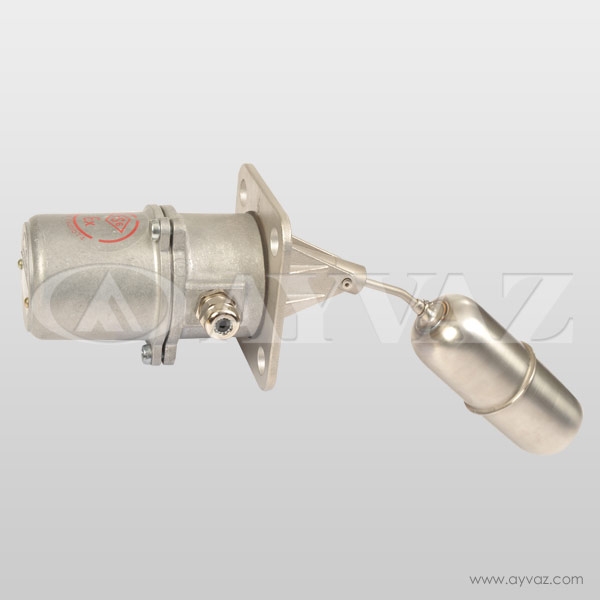

Out-put signal can be controlled by its float and float movements change its analog out-put signals. C-4 works according to physical principles that are buoyancy force, pull and push force of electromagnetic.
This level controller has 2 different reed switches.


Advantages of Ayvaz C-4 type level controller are;

-Real-time liquid level control,
-Simple design
-Wide setting range
-Long working life

**Teflon coating is possible for high corrosive liquid.

Materials:
Completely: Stainless Steel

Connection:
Flanged

Max. Working Pressure:
Up to 6 Bars

Max Working Temperature:
Up to 150 ºC

Application Area:
-Liquid tanks
-Petro-chemical plant

For product catalogue download, please click me.
