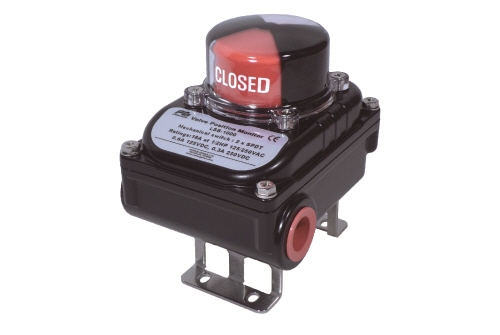

POWER-GENEX - Limit Switch
POWER-GENEX - Limit Switch
Model : LSB 1000
Enclosure : Weather Proof IP67, O-Ring Sealed
Cable Entries : M20 x 1.5
Terminal Block : 6 For Switches, 2 For Solenoid Valve Power
Mounting Bracket: Stainless Steel Acc. To VID/VDE 3845
Position Indicator : Dome Type 0 ̊C ~ 90 ̊C
Switches : 2-SPDT Mechanical Switch (Form C) As Standard
Bracket Size (mm) : 30 x 80 x 20 / 30 x 80 x 30

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

Robust valve position monitor with a good recognizable beacon, various switches and feedback options



Features

- Weatherproof to IP67 (optionally IP68)
- Rugged aluminum die-cast housing
- Various switches and sensors (available with Honeywell / P&F)
- NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator


Option

- 2 x SPDT mechanical limit switch
- 4 x SPDT mechanical limit switch
- 2 x P&F proximity sensor
- 2 x Hermetically-sealed proximity Sensors
- IP68

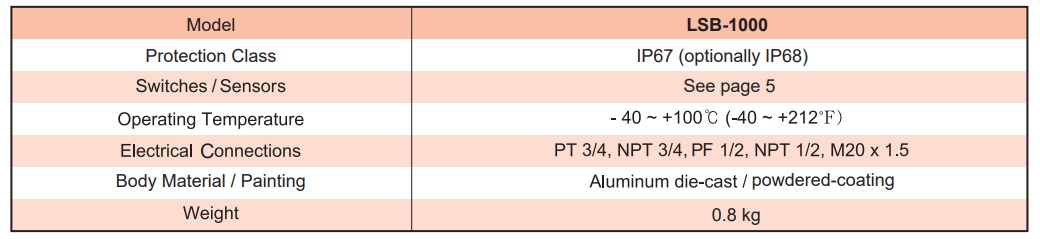

Specifications


For product catalogue download, please click me.
