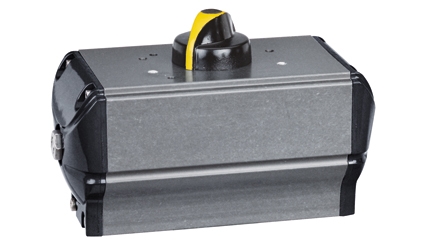

Model: ACTAIR

Design
Double-acting pneumatic actuator for mounting on quarter-turn valves (butterfly valves or ball valves). Top flange to ISO 5211. Control pressure up to 8 bar. Can be mounted on various types of valve stem ends (square end, flat end or key). Force transmission via rack-and-pinion, scotch-yoke or patented Amri yoke kinematics provides output torques of up to 16000 Nm which are ideal for actuating quarter-turn valves. ACTAIR is equipped with a visual position indicator and adjustable travel stops for open/closed position as standard. Manual override can be provided on request. For automated valve actuation, ACTAIR can be combined with AMTROBOX, AMTRONIC, SMARTRONIC or any other control unit with VDI/VDE 3845 interface.


Application
All applications in water, energy and industrial engineering

  •
Overview of technical data
Max. torque 17 Nm
Max. perm. temp., control press. medium 80 002
Min. control pressure 3 bar
Actuator movement Rotation
Manual override for actuator Yes
Actuator effect Double- acting
Type of control Continuous- action actuation
Actuator limit switch Yes
Min. ambient temperature, actuator 20 002
Ambient temperature, actuator 20- 002
Actuator position feedback Yes
