NEWAY - Trunnion Mounted Ball Valve (3 Pc Body)
NEWAY - Trunnion Mounted Ball Valve (3 Pc Body)
Class Rating: CL 150# to CL 2,500#
Body Material: A105N / WCB / F316
End Connection: RF Flanged End
Ball Material: Full Port, A182-F316
Size: 2" - 16"

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

Neway trunnion mounted ball valves are designed in accordance with API6D featuring 2 pc or 3 pc split body side entry or top entry design. Wide range of sealing material including PTFE, Peek, Devlon, Nylon etc, valve can be used in working temperature range -46℃~ 500℃. This series of valves are optional designed with Double block and bleed or double piston type. All valves are equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services. Neway full range of trunnion mounted ball valves is fire safe test certified by Llody’s Register per API607 and API6FA.

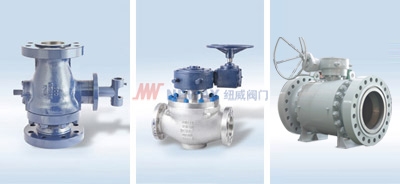

Neway trunnion mounted ball valves include:
2 pc cast steel side entry
Cast steel top entry
3 pc forge steel side entry



Design Feature



Product Range

Full port or reduce port
Fire safe certified
Double block & bleed
Emergency sealant injection
Cavity pressure self relief
Blowout-proof stem
Antic-static
Optional double piston design



2 PC Side Entry

Size

2~24”(DN50~DN600)

Rating

150~1500LB(PN16~PN250)

Body Materials

Cast Carbon Steel, Stainless Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel





Top Entry

Size

2~36”(DN50~DN900)

Rating

150~1500LB(PN16~PN250)

Body Materials

Cast Carbon Steel, Stainless Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel





3 PC Side Entry

Size

1-1/2~60”(DN40~DN1500)

Rating

150~2500LB(PN16~PN420)

Body Materials

Forge Carbon Steel, Stainless Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel



For product catalogue download, please click me.
