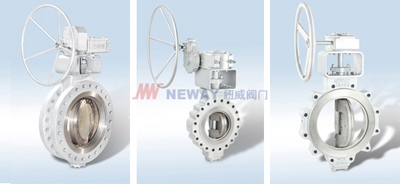

NEWAY - Butterfly Valve (Triple Offset)
NEWAY - Butterfly Valve (Triple Offset)
End Connection: Wafer, ANSI 150#
Body Material: WCB / CF8M
Disc Material: CF8 / CF8M
Seat: PTFE / Metal
Operating: Gear
Size: 2" - 12"

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

Neway triple offset butterfly valves are designed in accordance with API 609 with features of bi-directional lightweight cost-effective and low torque. For triple offset butterfly valves, the working temperature range is -196~ 816, and there’re various materials for choose.. In many industries, triple offset butterfly valve can be used not only on-off but also regulating the flow , thus it’s replacing traditional Gate, Globe & Ball valve



Design Feature



Product Range

Frictionless closure
Super long usage life
Double block and bleed
Blowout-proof stem
ISO 5211 top flange
Fire safe design
Optional stellited seat



Size

2”~120”DN50~DN3000

Rating

150~2500LBPN10~PN400

Body Materials

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Seat Materials

Graphite laminated, Metal-tometal

End connection

Wafer, Lug, Double Flange, BW



For product catalogue download, please click me.
