ROTOTHERM - Sentinel Recorder
ROTOTHERM - Sentinel Recorder
Model: SEN 10 / SEN 20 / SEN 30
Mounting: Panel / Surface
Connection: 1/2" Screwed BSPT
Alarms: 3 Alarms
Retransmission: Required
Event Pen: 1 / 2 / 3 Pen
Transmistter Power Supply: Required
Output Current: 4 to 20mA

Complete with :
100 Sheets of Chart Paper & A Pack Of Pen Capsule
With Totaliser & MultiInput

NOTE : For different specifications, please click 'INQUIRY ME' button located below.

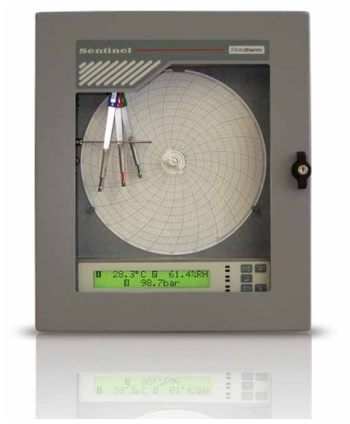

The Sentinel range of microprocessor based circular chart recorders is available in 1, 2 and 3 channel version.


Sentinel combines the simplicity and clarity of pen drawn traces together with the versatility of microprocessor control.

Each channel is equipped with a universal signal input which is compatible with all industry sensor and signals including
thermocouple and RTDs.



Features

·                        Any Combination of Temperature, Pressure, Flow and Humidity: 1, 2 or 3 pen

·                        IP66 construction

·                        Panel or surface mounting

·                        Configurable via front panel keypad

·                        0.1% measurement accuracy

·                        Weight: 7 kg (Single Pen), 7.7 kg (3 pens)

·                        Alarms available

·                        Steel case

·                        Transmitter model SME162 required for humidity measurement



For product catalogue download, please click me.
