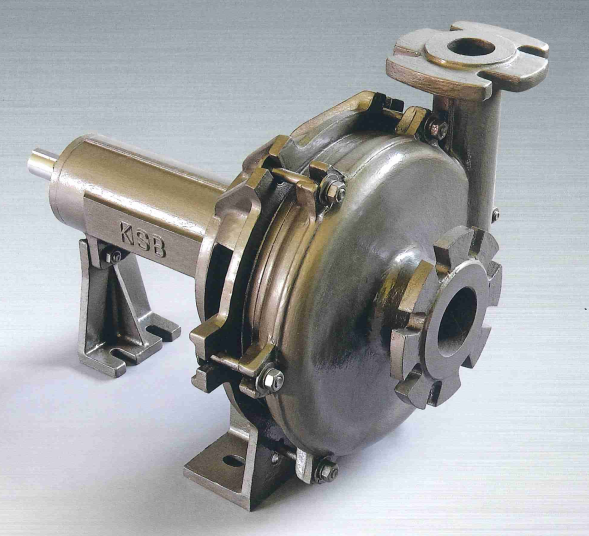

MTP - OB-SH Pump
MTP - OB-SH Pump
Pump End Material Configuration: SSCMA / SS304
Seal: Mechanical / Gland Packing
Size: 1-1/4" - 4"

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

Specification



Design

-Side discharge end suction

-Back pull out design for easy maintenance. Also, the general pump design concept is aim for least requirement of any maintenance attention and providing long service life span.

-All impellers are incorporate with back vane to reject solids from water box entering seal housing.

-Performance curve coverage area at best efficiency available for each and every application.

-Flanges follow ISO 7005-2 1988E. PN16.

-Low speed requirement design.



Material

-Casing – Stainless Steel as standard.

-Bearing Pedestal Construction: Cast Iron as standard.

-Shaft; stainless steel as standard, coupling end is complied to ISO standard dimensions.

-Seal Housing; Cast Iron as standard.

-Impeller – Stainless Steel as standard.



Water Box Sealing

-Mechanical Seal – Euqivalaent to J. Crane, Sic vs Sic and Viton Elastomer.



Bearing

-Dual deep groove ball bearing arrangement, SKF or equivalent.

-Seal for life lubrication as standard.

-Oil bath for high temperature applications.



Pump End Sealing

-NBR as standard.

-Viton for high temperature applications.



Working Temperature

-Recommended : 80 deg C

-Maximum : 120 deg C

-Optional models for >120 deg C
