AYVAZ - Thermodynamic Steam Trap
AYVAZ - Thermodynamic Steam Trap
Model: TDK-45 / TDK-71 / TDK-PS
Working Pressure: Up to 40 Bar
Material: Forged Steel / SS316
Connection: Screwed End BSPT
Size: 1/2" - 1"

NOTE : For different specifications, please click 'INQUIRY ME' button located below.

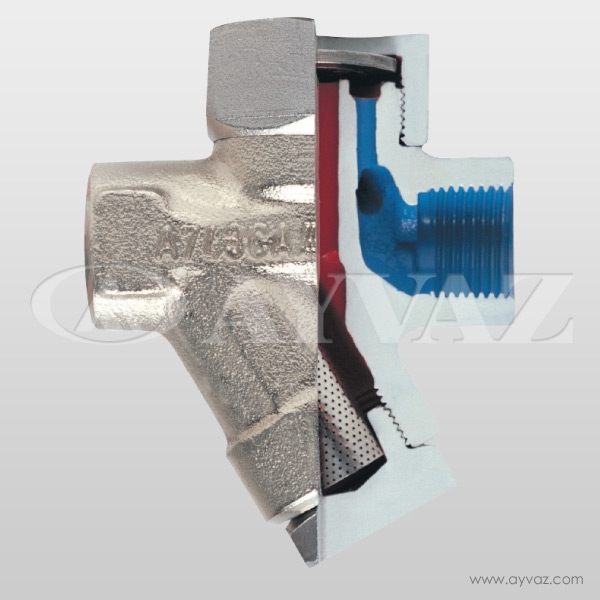

TDK-45 Thermodynamic Steam Traps

Ayvaz TDK-45 thermodynamic steam traps leak tightness parts are made of stainless steel and body is made of forged steel C22,8. Output pressure shouldn’t pass %80 of initial pressure at operating conditions. TDK-45 can work automatically depending on condensate load. We can supply all spare parts. Filter is type Y and cleaning is very easy.

Ayvaz TDK-45 should be assembled to the pipe line at horizontal position for working efficiently and long working time. Isolation valves should be used for safety during the maintenance and steam traps changing.

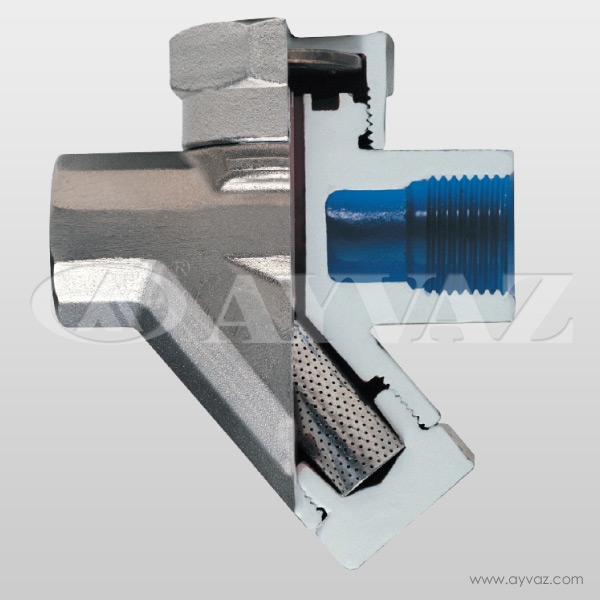

TDK-71 Thermodynamic Steam Trap

Ayvaz TDK-71 thermodynamic steam traps leak tightness parts are made of stainless steel and body is made of stainless steel casting. Output pressure shouldn’t pass %80 of initial pressure at operating conditions. TDK-71 can work automatically depending on condensate load. We can supply all spare parts. Filter is type Y and cleaning is very easy.

Ayvaz TDK-71 should be assembled to the pipe line at horizontal position for working efficiently and long working time. Isolation valves should be used for safety during the maintenance and steam traps changing.

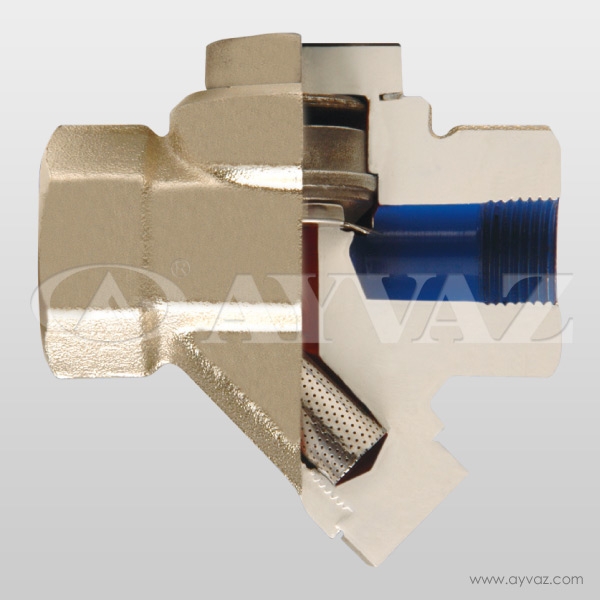

TDK-PS Thermodynamic Steam Trap

Ayvaz TDK-PS thermodynamic steam traps leak tightness parts are made of stainless steel and body is made of stainless steel casting. Output pressure shouldn’t pass %80 of initial pressure at operating conditions. TDK-PS can work automatically depending on condensate load. We can supply all spare parts. Filter is type Y and cleaning is very easy.

Ayvaz TDK-PS should be assembled to the pipe line at horizontal position for working efficiently and long working time. Isolation valves should be used for safety during the maintenance and steam traps changing.



Typical Applications:
-Drying units
-Press units

-Steam jacket pipes
-Irons



For product catalogue download, please click below.

TDK-45 Thermodynamic Steam Traps

TDK-71 Thermodynamic Steam Trap

TDK-PS Thermodynamic Steam Trap
