AYVAZ - Thermostatic Steam Trap
AYVAZ - Thermostatic Steam Trap
Model: TKK-2Y / TKK-21
Working Pressure: Up to 32 Bar
Material: A105
Connection: Screwed End BSPT
Size: 1/2" - 1"

NOTE : For different specifications, please click 'INQUIRY ME' button located below.

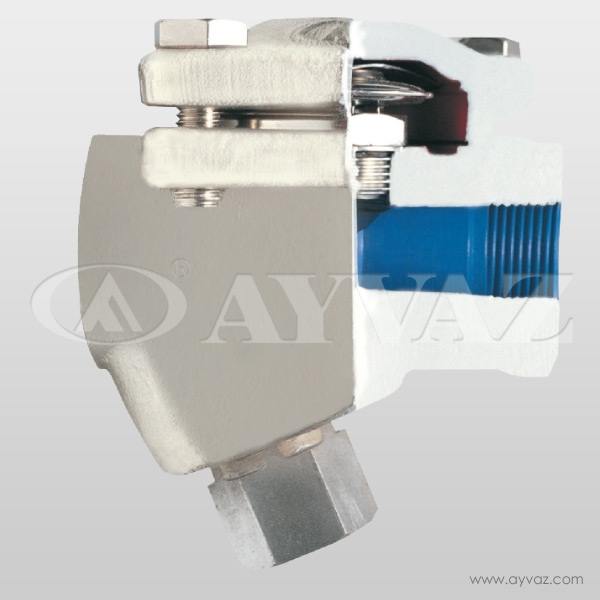

Ayvaz TKK-2Y Thermostatic Steam Trap has high resistance to corrosion and water hammer.

Filter “Y” is the unique difference between the other types and TKK-2Y. It is easy to clean this type of filter. Its body is forged steel the other inner parts are stainless steel. TKK-2Y has 3 capsule options.

“S” type capsule is standard. All inner parts can supply as spare parts. The stainless steel ball inside the specially designed seat acts as check valve.

Ayvaz TKK-2Y should be assembled to the pipe line at horizontal position for working efficiently and long working time. Isolation valves should be used for safety during the maintenance and steam traps changing.

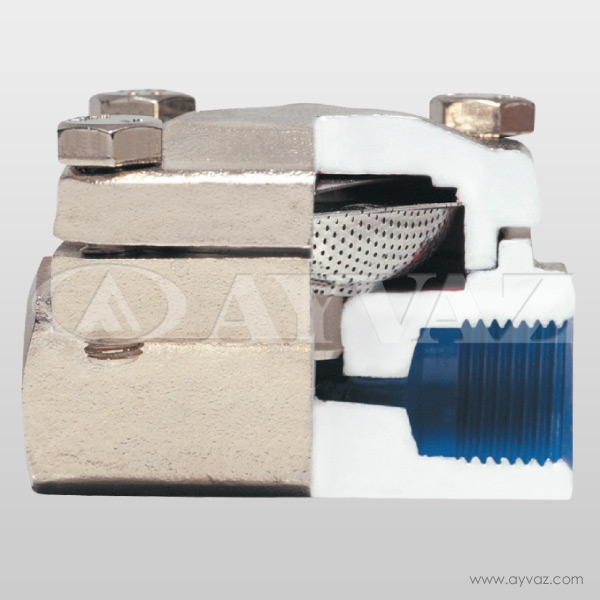

Ayvaz TKK-21 Thermostatic Steam Trap has high resistance to corrosion and water hammer. The filter is under the cover at TKK-21 Type.

For cleaning process it is enough to open the cover which is above the body.

TKK-21 has 3 capsule options. “S” type capsule is standard. All inner parts can supply as spare parts. The stainless steel ball inside the specially designed seat acts as check valve.

The difference of the TKK 21 is compact body and low condensate evacuation capacity. It is designed especially for irons.
Ayvaz TKK-21 should be assembled to the pipe line at horizontal position for working efficiently and long working time. Isolation valves should be used for safety during the maintenance and steam traps changing.



For product catalogue download, please click below.

TKK-2Y Thermostatic Steam Traps

TKK-21 Thermostatic Steam Traps
