KSB - Quarter Turn Single Acting Pneumatic Actuator
KSB - Quarter Turn Double Acting Pneumatic Actuator
Model: DYNAACTAIR

Design

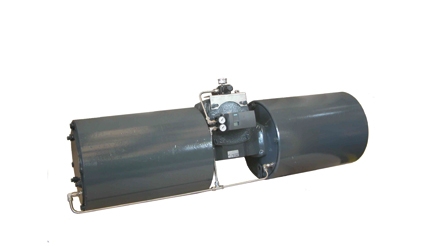

Single-acting pneumatic actuator for mounting on quarter-turn valves (butterfly valves or ball valves). Top flange to ISO 5211. Control pressure up to 8 bar. Can be mounted on various types of valve stem ends (square end, flat end or key). Force transmission via rack-and-pinion, scotch-yoke or patented Amri yoke kinematics provides output torques of up to 8000 Nm which are ideal for actuating quarter-turn valves. Reset to fail-safe position is effected by means of spring assemblies if control air supply is interrupted. DYNACTAIR is equipped with a visual position indicator and adjustable travel stops for open/closed position as standard. Manual override can be provided on request (up to DYNACTAIR 100). For automated valve actuation, DYNACTAIR can be combined with AMTROBOX, AMTRONIC, SMARTRONIC or any other control unit with VDI/VDE 3845 interface.

Application

All applications in water, energy and industrial engineering.

Overview of technical data
Max. torque 8000 Nm
Max. perm. temp., control press. medium 80 002
Min. control pressure 3 bar
Actuator movement Rotation
Manual override for actuator Yes
Actuator effect Single- acting
Type of control Continuous- action actuation
Actuator limit switch Yes
Min. ambient temperature, actuator 80 002
Ambient temperature, actuator 20- 002
Actuator position feedback Yes
