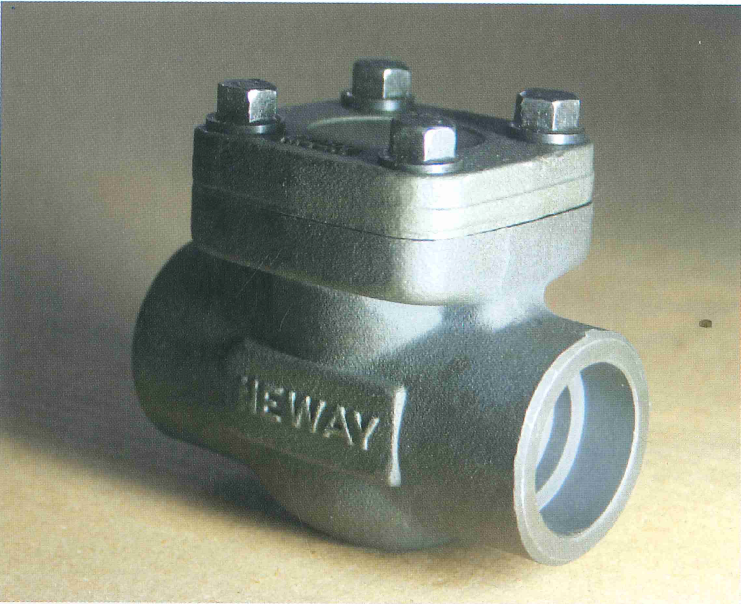

NEWAY Piston Lift Check Valve
Class Rating: 800# / 1500#
Body Material: A105 / F316
End Connection: Screwed NPT / Socket Weld
Size: 1/2" - 2"

Neway compact forged steel valve series consist of gate, globe and check valves, optimized by the most advanced FEA (Finite Element Analysis) design and manufacturerd in accordance with API 602, EN/ISO15761 and ANSI B16.34. These valves are available in size from NPS 1/2" to 2" in ANSI class 800 lbs, 1500 lbs and 2500 lbs. A wide range of body materials are available including A105, LF2, F11/F12, F5/F9, F304, F316/L etc.; special service applications valves such as NACE MR 0175 can also be provided.

Bolted bonnet is the standard design; threaded, seat-welded or welded bonnet are optional. A complete range of integral flanged end gate, globe and check valves are now provided.

The main components are manufactured using CNC machine centers to ensure consistent high quality. Neway has two modern production lines, incorporating assembly, testing and packaging processess which can product in excess of 1000 pieces of valves per day.
