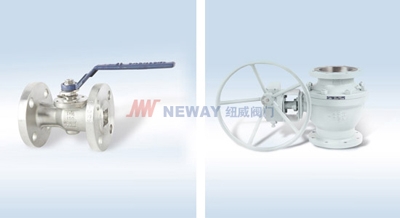

NEWAY - Floating Ball Valve (2 Pc Body)
NEWAY - Floating Ball Valve (2 Pc Body)
Class Rating: 150# / 300#
End Connection: RF Flange End
Body Material: WCB / CF8M
Ball Material: Full Port, A182-F316
Seat: PTFE
Size: 1/2" - 12"

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

Neway cast steel floating ball valves are designed in accordance with ISO17292 featuring 2 pc split body side entry or uni-body. This series of valves are usually used in service of low pressure (150~300LB) and wide temperature range (-196℃~ 500℃). Neway full range of cast steel floating ball valves is fire safe test certified by Llody’s Register per API607 and API6FA.



Design Feature



Product Range

Full port or reduce port
Fire safe certified
Blowout-proof stem
Anti-static
Low emission control
Optional locking device
ISO 5211 top flange



Size

：

1/2~10（DN15~DN250）

Rating

：

150~300LB（PN16~PN40）

Body Materials

：

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim

：

Carbon Steel, Stainless Steel, Duplex Steel

End Connection

：

RF，BW
