NEWAY - Ball Valve (3 Pc Body)
NEWAY - Ball Valve (3 Pc Body)
Class Rating: CL 800# / CL 1500# / CL 2500#
End Connection: Screwed End NPT / Socket Weld End
Body Material: A105N / F316
Ball Material: Full Port, A182-F316
Seat: Peek
Size: 1/2" - 2"

NOTE : For different valve specifications, please click 'INQUIRY ME' button located below.

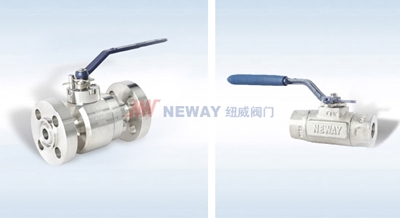

Neway forged steel floating ball valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196~ 500) . It can substitute the small size trunnion mounted ball valves to save cost. Neway full range of forged steel floating ball valves is fire safe test certified by Llodys Register per API607 and API6FA.



Design Feature



Product Range

Full port or reduce port
Fire safe certified
Blowout-proof stem
Anti-static
Low emission control
Optional locking device
SO 5211 top flange



2 PC Forged Steel

Size

1/2~4” (DN15~DN100)

Rating

150~2500LB (PN16~PN420)

Body Materials

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel

End Connection

RF, RTJ, BW, SW, NPT





3 PC Forged Steel

Size

1/2~2” (DN15~DN50)

Rating

150~2500LB(PN16~PN420)

Body Materials

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel

End Connection

SW, NP



For product catalogue download, please click me.
